DXF Viewer & Editor
Open DXF drawings, inspect geometry and continue editing without installing desktop CAD software.
Online DXF Viewer · Editor · 2D CAD
Professional 2D CAD.
Professional 2D CAD.
Built around DXF.
Open, edit, draw, dimension and export DXF files in a focused browser-based CAD workspace — fast to launch, precise to use, and ready for technical work.
No installation
No account required
Drawing files stay in your browser workflow
X 1245.000 Y 782.000SNAP · GRID · ORTHO
Core capabilities
The tools you expect from a practical 2D CAD workspace.
DXFDraw is built around real drawing workflows: create geometry, modify it, annotate it and export clean DXF data when you are done.
2D Drawing Tools

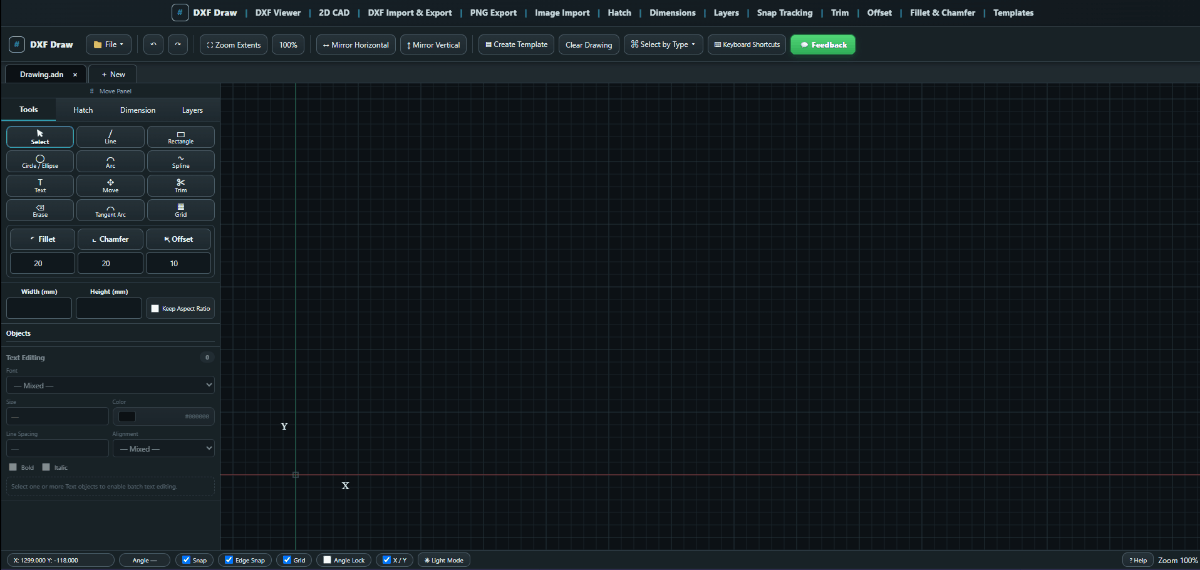

Line, Rectangle, Circle, Arc, Polyline and Spline tools for precise browser-based drafting.
Modify Geometry
Move, Rotate, Mirror, Scale, Trim, Offset, Fillet, Chamfer and Explode with a CAD-style workflow.
Snap & Tracking
Point and edge snapping, angle locking and tracking guides help place geometry accurately.
Dimensions
Linear, Aligned, Angular, Radius and Diameter dimensions plus Leader annotations.
Hatch
Apply hatch patterns to closed regions with adjustable pattern, angle, scale and appearance.
Layers
Organize drawing entities into layers and control their visual properties from one workspace.
Image Import

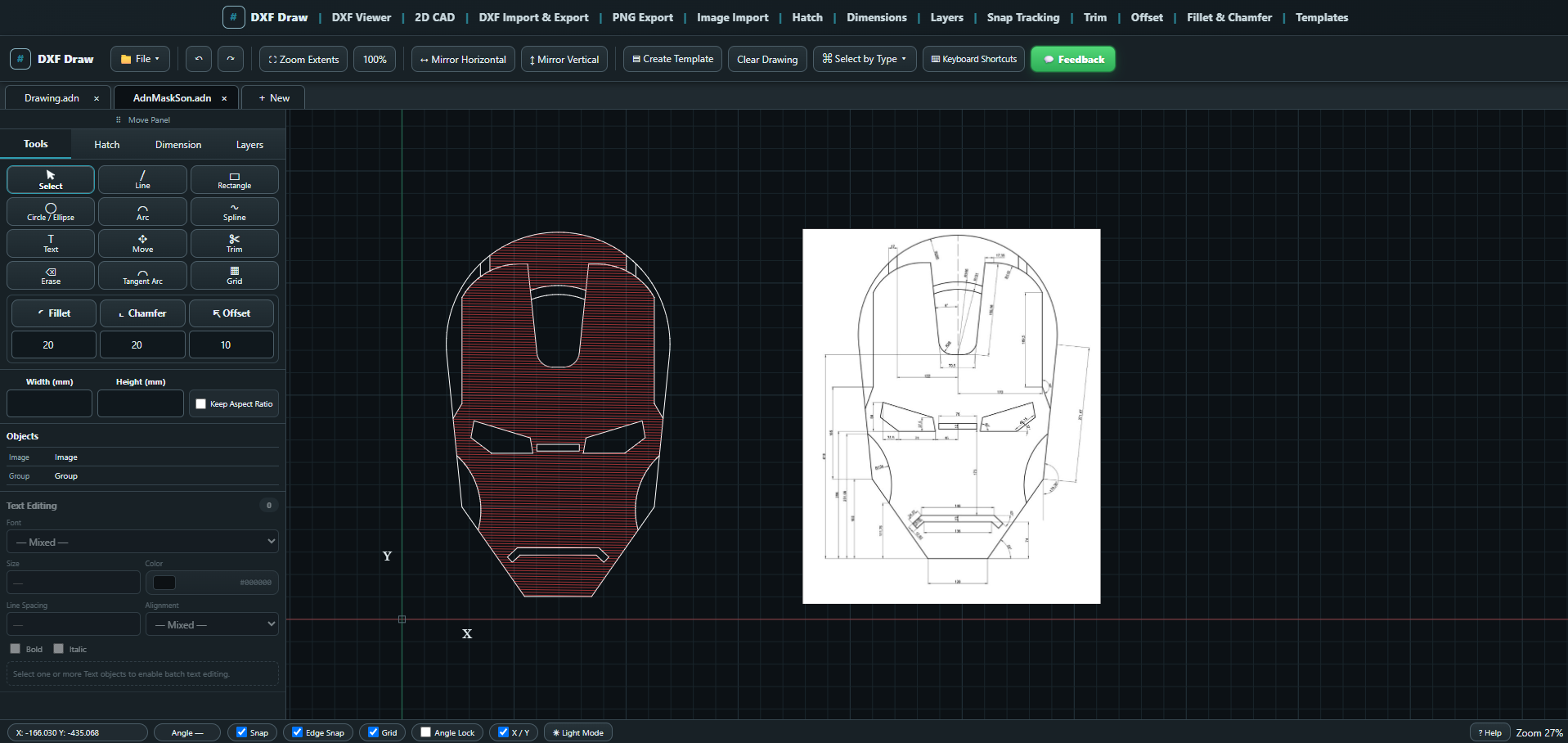

Bring reference images into the drawing area and resize or position them alongside CAD geometry.
DXF & PNG Export
Export CAD geometry as DXF or create clean PNG output for documentation and communication.
Drawing Templates
Create technical title blocks and reusable drawing templates for a consistent professional output.
Native Project Files
Save editable DXFDraw project data in the native ADN format and reopen it later for continued work.
Dark CAD Workspace
A focused dark interface designed to keep drawing geometry and technical information readable.
Simple workflow
Open. Edit. Export.
No installer, no lengthy setup and no account wall. Open the application and start working.
Open your drawing
Launch DXFDraw and import a DXF file, open an ADN project or start with an empty drawing.
Work with CAD tools
Draw, trim, offset, fillet, chamfer, hatch, dimension, organize layers and refine geometry.
Export the result
Save the editable project or export supported drawing geometry back to DXF for the next stage of your workflow.
Privacy-first by design
Your CAD workflow stays focused on your device.
DXFDraw currently runs as a browser-based CAD application without an account system or cloud drawing library. Drawing files are opened and processed by the application in your browser rather than being uploaded to a DXFDraw drawing-storage service.
No account required
No cloud drawing library
No advertising at launch
Local file import and export
See our Privacy Policy for details.
Built for technical work
A practical tool for people who work with geometry.
DXFDraw is useful anywhere a lightweight browser-based 2D CAD and DXF workflow can save time.
ManufacturingPrepare and inspect 2D geometry before downstream production workflows.
Glass & CNCWork with production-oriented outlines, radii, chamfers, dimensions and DXF geometry.
FabricationMake quick geometry changes without opening a heavyweight desktop CAD suite.
Technical DraftingCreate and annotate practical 2D drawings from a browser-based workspace.
FAQ
Questions, answered.
Is DXFDraw free to use?
DXFDraw is available to launch for free at app.dxfdraw.com. Future optional paid features may be introduced separately, but the current public application does not require an account.
Do I need to install anything?
No. DXFDraw runs in a modern desktop web browser. Open the application and start drawing.
Can DXFDraw open and export DXF files?
Yes. DXFDraw supports DXF import and exports supported CAD geometry back to DXF. The native ADN project format preserves DXFDraw-specific project information for continued editing.
Which CAD tools are included?
The application includes drawing tools, Trim, Offset, Fillet, Chamfer, Explode, Hatch, Layers, Snap/Tracking, dimensions, templates, image import and more.
Are my drawings uploaded to a cloud account?
There is currently no DXFDraw account or cloud drawing library. Drawing import and export is handled through the browser application. See the Privacy Policy for the current data-handling details.
Which devices are recommended?
DXFDraw is designed primarily for desktop browsers where a mouse, keyboard and larger drawing area provide the best CAD experience.
Ready to draw?
Open DXFDraw ↗
Launch DXFDraw.
Open the CAD workspace in your browser and start working with DXF geometry now.
